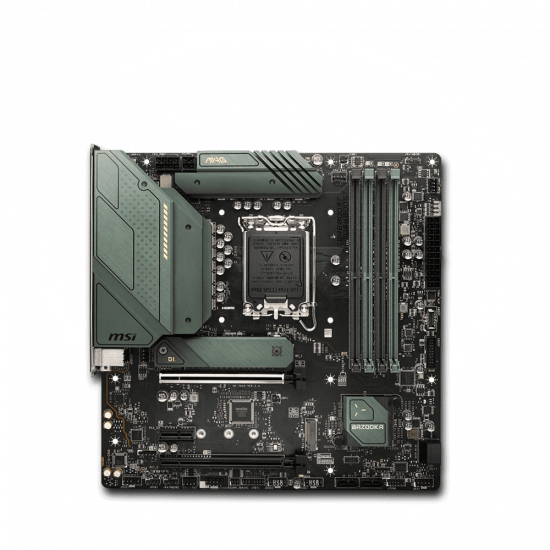

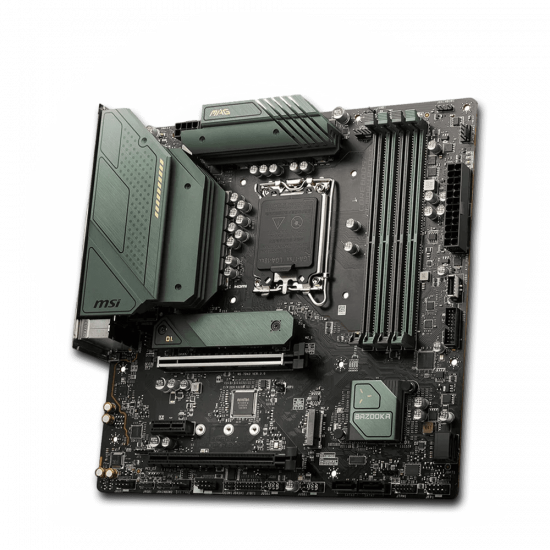

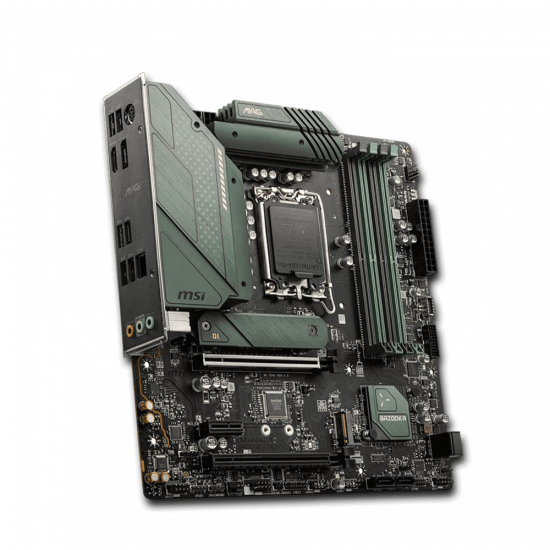

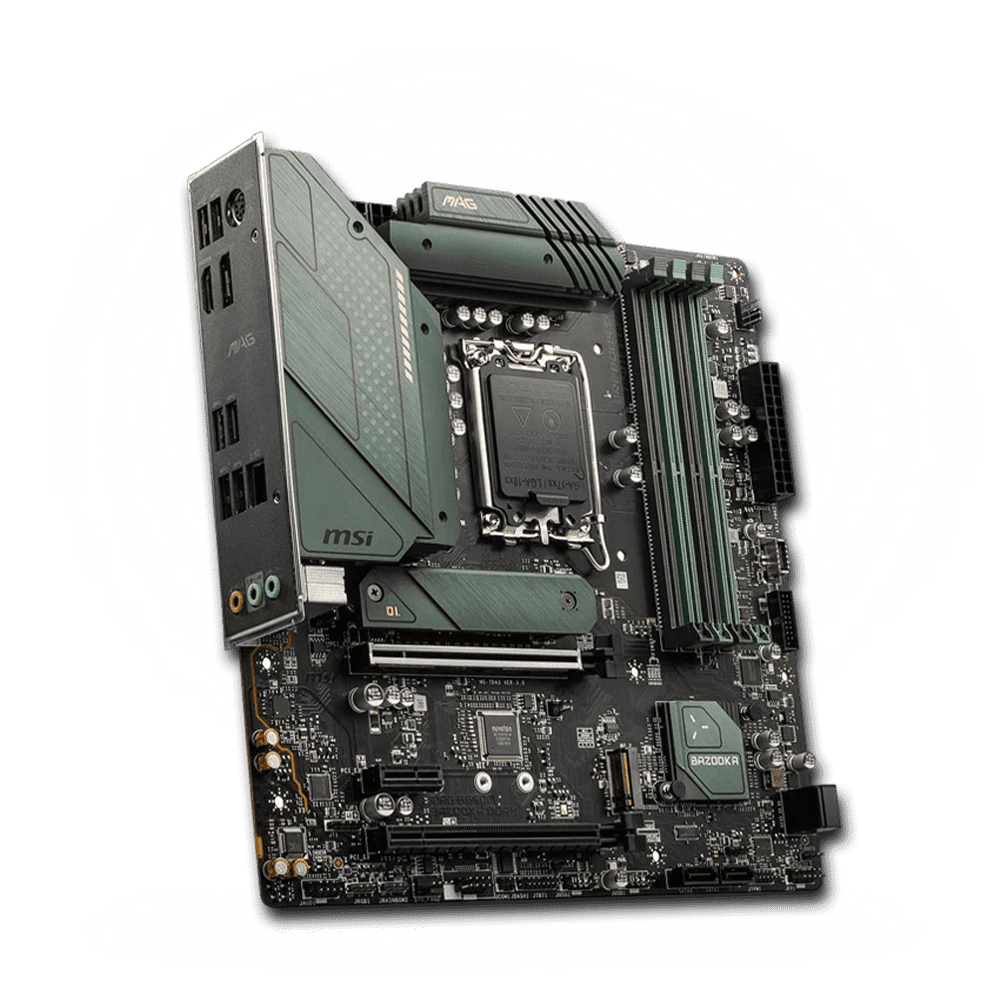

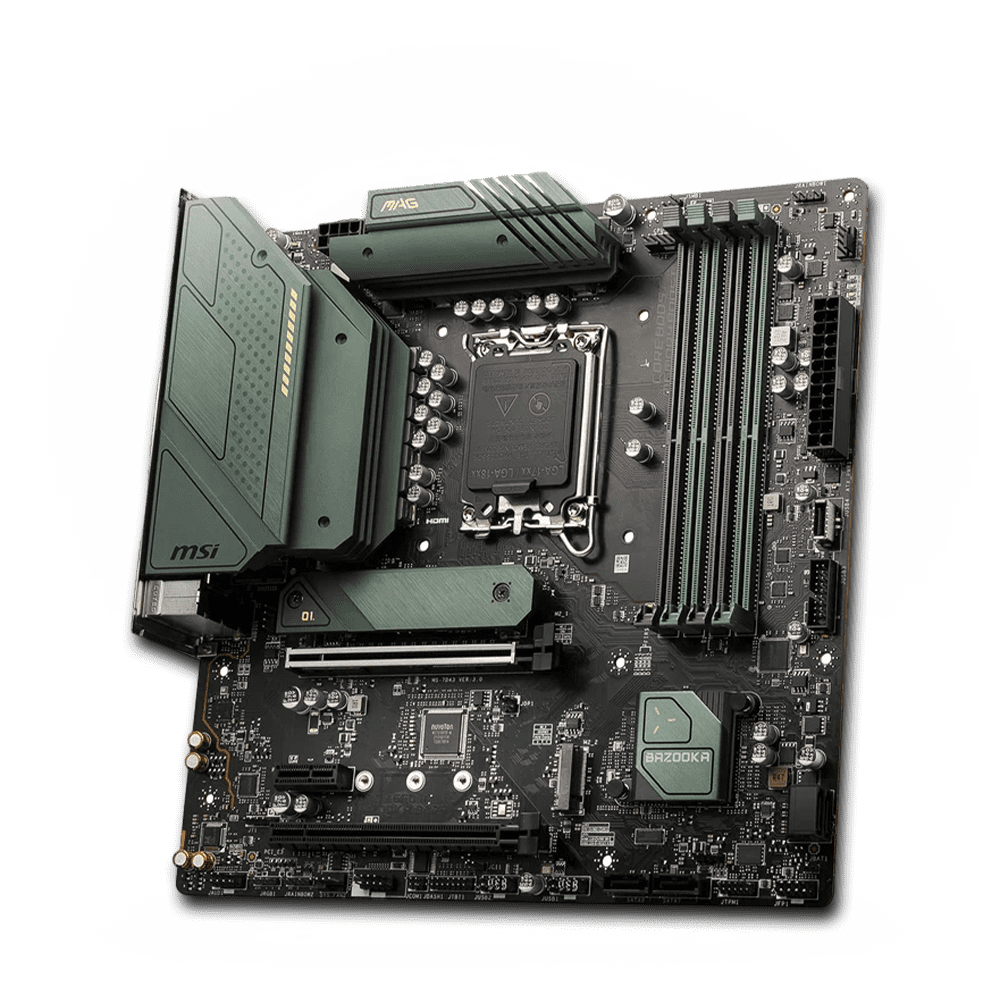

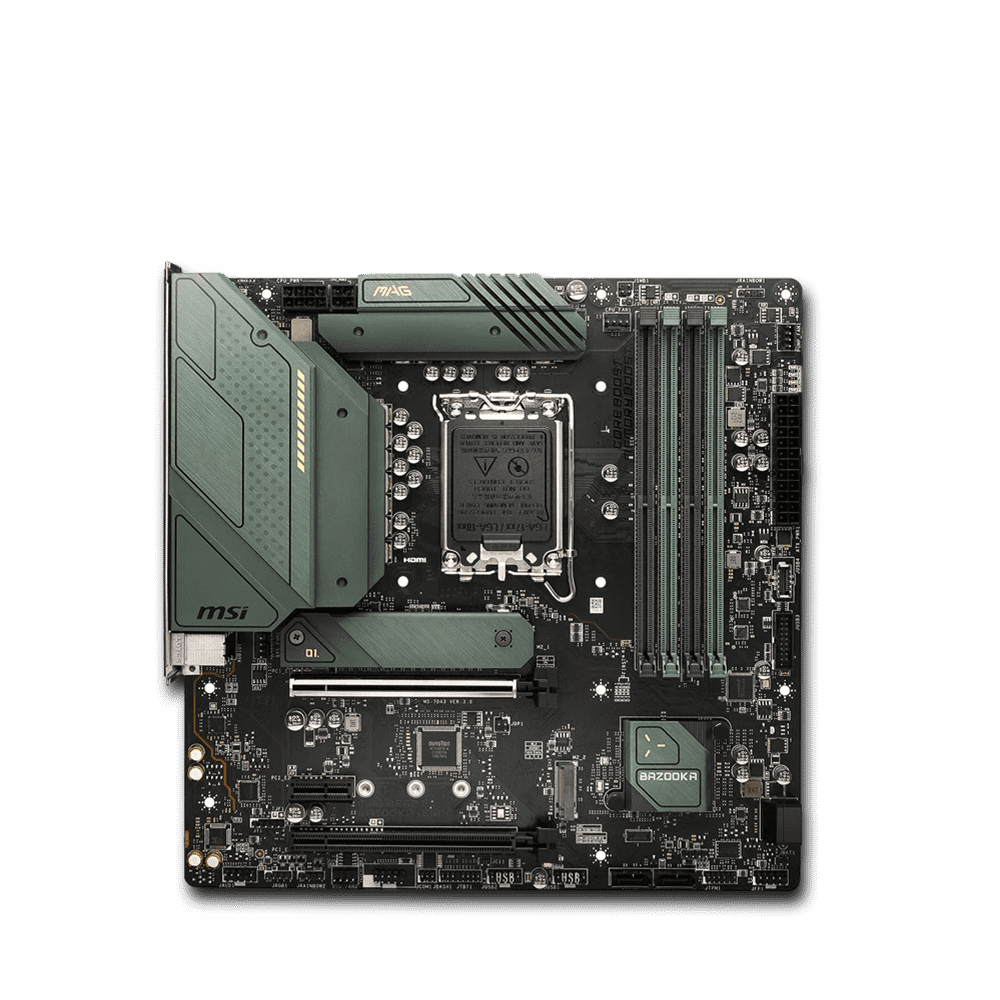

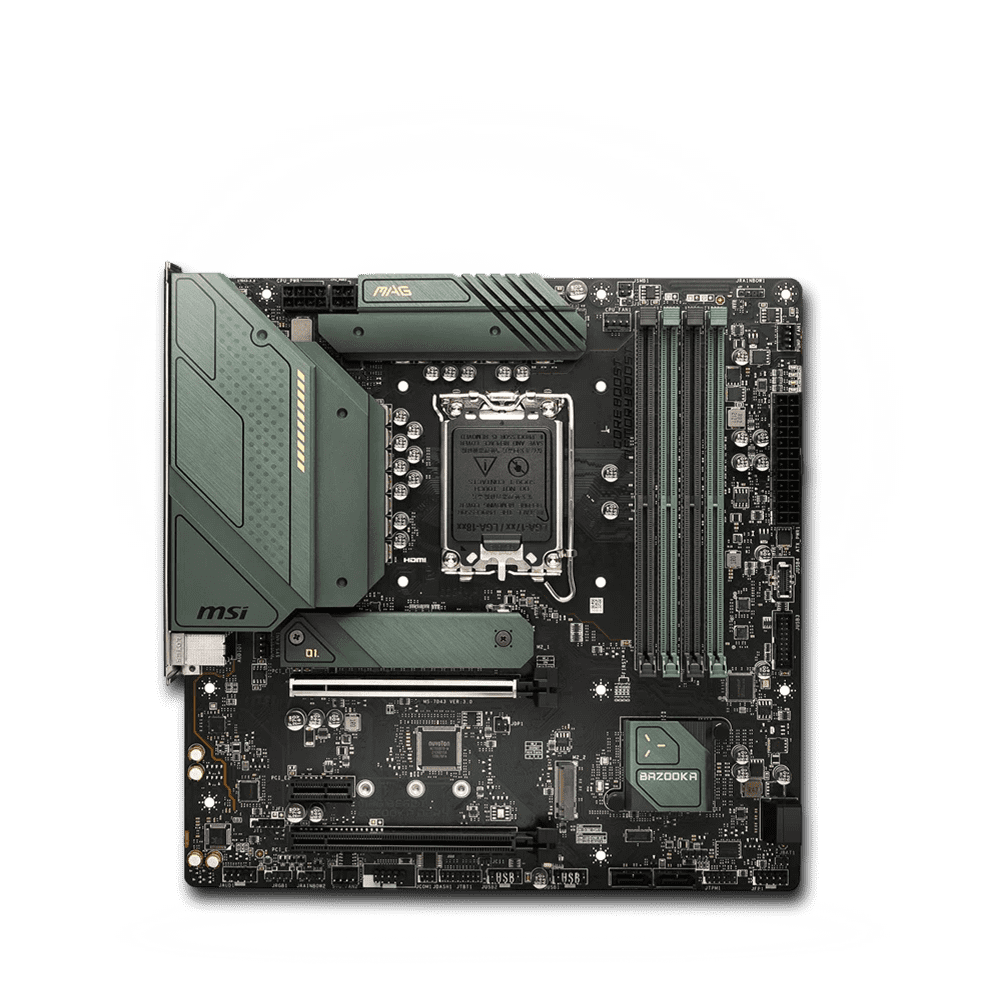

Поддерживаемые процессоры :

Поддерживает процессоры Intel® Core™ 12-го поколения (LGA1700)

Чипсет :

Intel B660

Подсистема памяти :

4x DDR4 memory slots, support up to 128GB, Supports 1R 2133/2666/3200 MHz (by JEDEC & POR), Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz, 1DPC 2R Max speed up to 4000+ MHz, 2DPC 1R Max speed up to 4000+ MHz, 2DPC 2R Max speed up to 3600+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP).

Интерфейсы для плат расширения :

2x PCIe x16 slots, PCI_E1 (From CPU), Support PCIe 4.0 x16, PCI_E3 (From B660 chipset), Support PCIe 3.0 x4, 1x PCIe 3.0 x1 slot (Fom B660 chipset).

Особенности :

1x Clear CMOS jumper, LED FEATURES, 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 4x EZ Debug LED.

Подключение :

Интерфейсы    1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, INTERNAL USB CONNECTORS, 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset), 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074), Supports additional 2 USB 3.2 Gen 1 5Gbps ports, 2x USB 2.0 Type-A connectors (From B660 chipset), Supports additional 4 USB 2.0 ports, FAN CONNECTORS, 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 2x 4-pin system fan connectors, SYSTEM CONNECTORS, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 1x Tuning Controller connector, 1x TBT connector (supports RTD3), 1x Serial port.

Интерфейсы накопителей :

4x SATA 6Gb/s ports (From B660 chipset), 2x M.2 slots (Key M), M2_1 slot (From CPU), Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices, M2_2 slot (From B660 chipset), Supports up to PCIe 4.0 x4, Supports up to SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, Supports Intel® Optane™ Memory, Support Intel® Smart Response Technology for Intel Core™ processors, SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Сетевой интерфейс :

1x Realtek® RTL8125B 2.5 Gbps LAN контроллер,Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.2.

Аудиоподсистема :

Кодек Realtek®ALC897, 7.1-канальный звук высокой четкости

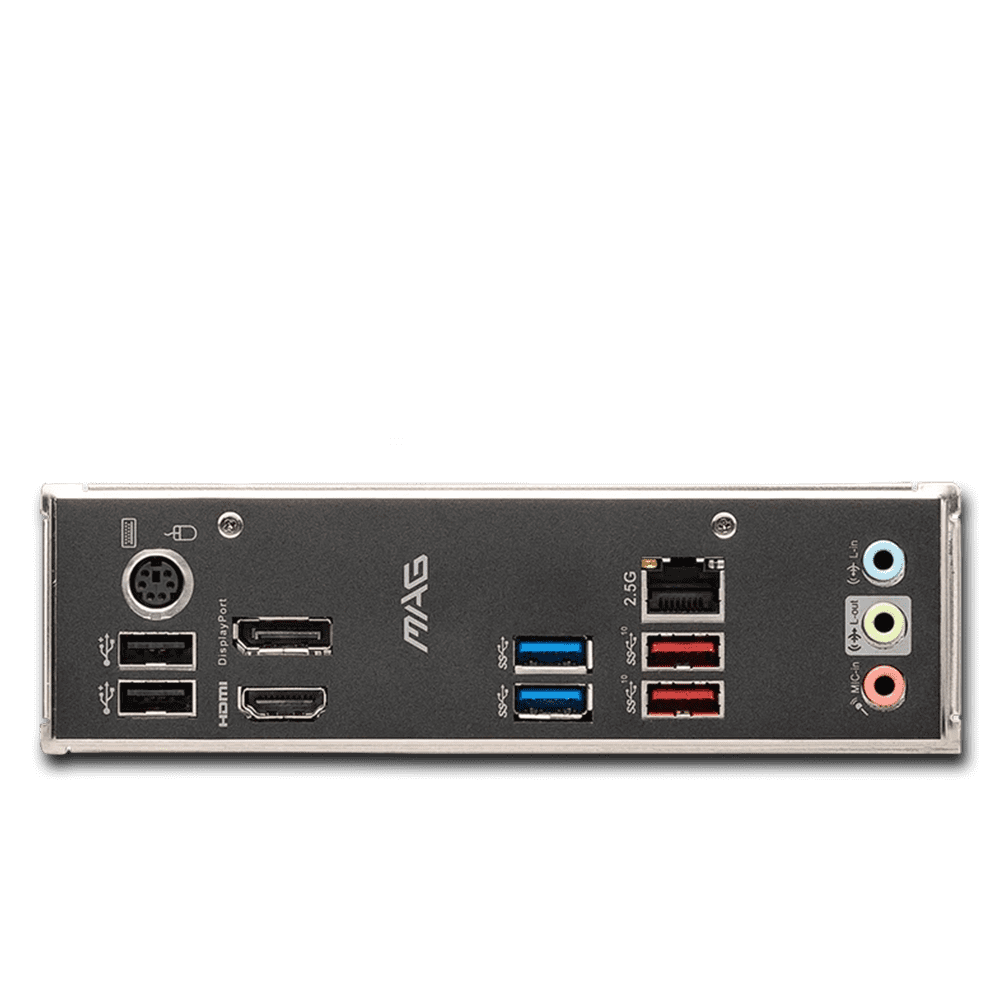

Интерфейсы и кнопки на задней панели :

Keyboard / Mouse, DisplayPort, USB 3.2 Gen 1 5Gbps Type-A, LAN port, Wi-Fi / Bluetooth, Audio connector, USB 2.0, HDMI, USB 3.2 Gen 2 10Gbps Type-A.

Форм-фактор :

mATX (244 x 244 мм)

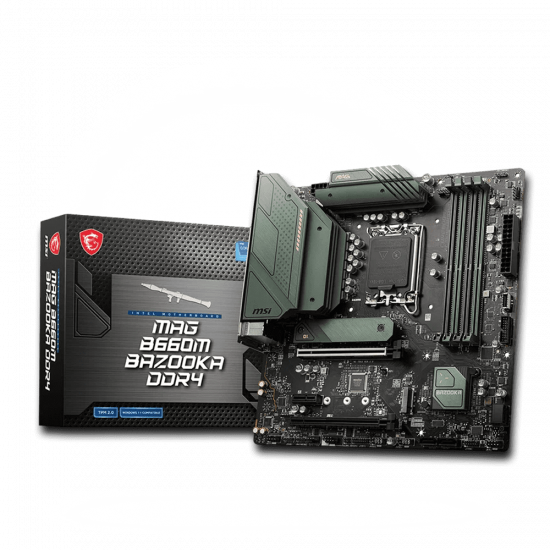

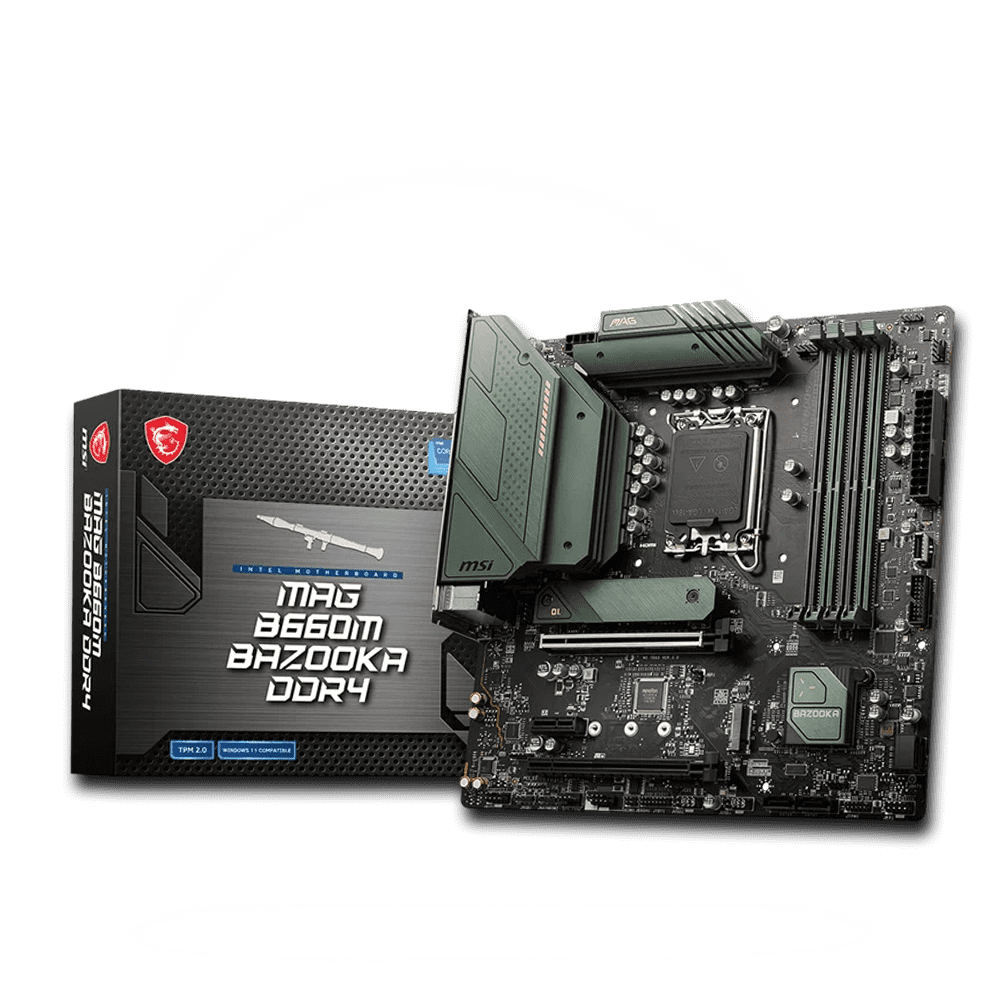

Комплект поставки :

Материнская плата, Инструкция пользователя (только на английском языке), DVD-диск с программным обеспечением и драйверами, 2 SATA-кабеля, Заглушка задней панели платы

Срок гарантии :

12 месяцев
